Business Process Mapping: How to Map the Work That Actually Happens

What is business process mapping?

Business process mapping is the visual documentation of how work moves from a starting request to a defined result. A useful map identifies the steps, decisions and handoffs involved in producing that result, and who owns each one.

Different mapping methods answer different questions:

• A basic flowchart shows the sequence of steps and decisions.
• A swimlane diagram shows which person, team or function performs each part.
• SIPOC defines the suppliers, inputs, process, outputs and customers at a high level.
• Value stream mapping separates value-producing activity from delay, inventory and other waste.
• Business Process Model and Notation, usually called BPMN, provides a formal language for modeling more complicated processes and events.

The choice matters, but not as much as the evidence behind the map. A precise BPMN diagram can still describe the wrong process. A rough swimlane drawn from real cases can be more useful than a technically perfect model assembled from policy documents and conference-room memory.

Start with the question the map must answer. If the problem is that customer onboarding takes 26 days, the map needs to expose the route controlling those 26 days. It does not need to capture every administrative action performed by everyone who touches the customer account.

Why process maps become unreliable

Process-mapping efforts can go wrong well before someone opens the diagramming software.

The team may not agree on the purpose. One leader expects documentation for an audit. Another wants an automation specification. The people doing the work expect relief from a broken approval route. They can all approve the same diagram while believing it will be used for different things.

The project may also begin with the desired future process. That is tempting because the future state is cleaner and easier to present. But it removes the evidence needed to understand the current delay. When the current route is skipped, the team cannot tell whether the proposed change removes a real constraint or merely redraws the boxes.

Notation creates another trap. A specialized modeling language can be necessary for implementation, integration or control design. Used too early, it can make the model inaccessible to the people whose knowledge is required to correct it. The room begins debating symbols while the undocumented workaround remains in somebody's inbox.

In practice, choosing the notation is usually easier than getting an honest account of the route. People remember the formal process first. The exceptions come out later, once someone mentions the spreadsheet or the approval meeting everyone has learned to work around.

Then there is maintenance. Processes change as customers, systems and staffing change. Informal operating agreements shift and nobody records the change. A map that was accurate six months ago can become misleading without anyone making an explicit decision to replace it.

Michael Rosemann's two-part discussion of process-modeling pitfalls organizes 22 recurring problems, running from strategy and governance through modeling practice to long-term maintenance. Rosemann is explicit that the papers present a personal viewpoint rather than findings from a structured qualitative study. They are best used as an experienced practitioner's warning list, not as evidence of how frequently each problem occurs.

Work-as-Imagined and Work-as-Done

Safety science distinguishes Work-as-Imagined from Work-as-Done.

Work-as-Imagined is the process as described in policies, procedures and management expectations. Work-as-Done is how people adapt the work to the conditions in front of them.

The two will not match perfectly in a complex operation. Customers send incomplete information. Systems go down. A promised resource is not available. A specialist knows which formal step can be combined safely with another. People adjust so the result can still be produced.

Some deviations are careless, unsafe or noncompliant. Others are necessary adaptations to conditions the formal process did not anticipate. If every difference is treated as misconduct, people learn to hide the workarounds that keep the operation running. The organization loses the chance to learn which parts of its process are incomplete, unrealistic or badly supported.

This is why a current-state map cannot be built from the procedure manual alone. It must include the people doing the work and evidence from actual cases.

How to build a current-state process map

1. Choose a concrete outcome

Name what the process is supposed to produce, for whom and by when. "Customer onboarding" is a domain. "A new enterprise customer can use the contracted service" is an outcome you can trace.

Confirm that the outcome is still valid and still wanted. A perfectly mapped process cannot repair an initiative that leadership has abandoned or never funded.

2. Select real cases

Use more than the cleanest example. Include a routine case, a delayed case and an exception if the volume permits it. One case can reveal a condition worth investigating, but it cannot establish that the condition controls the process generally.

3. Reconstruct the route

Record what happened. Mark each decision, handoff and wait. Mark every return and every change of direction. Keep the official process nearby, but do not use it to fill gaps in the evidence.

4. Separate touch time from waiting

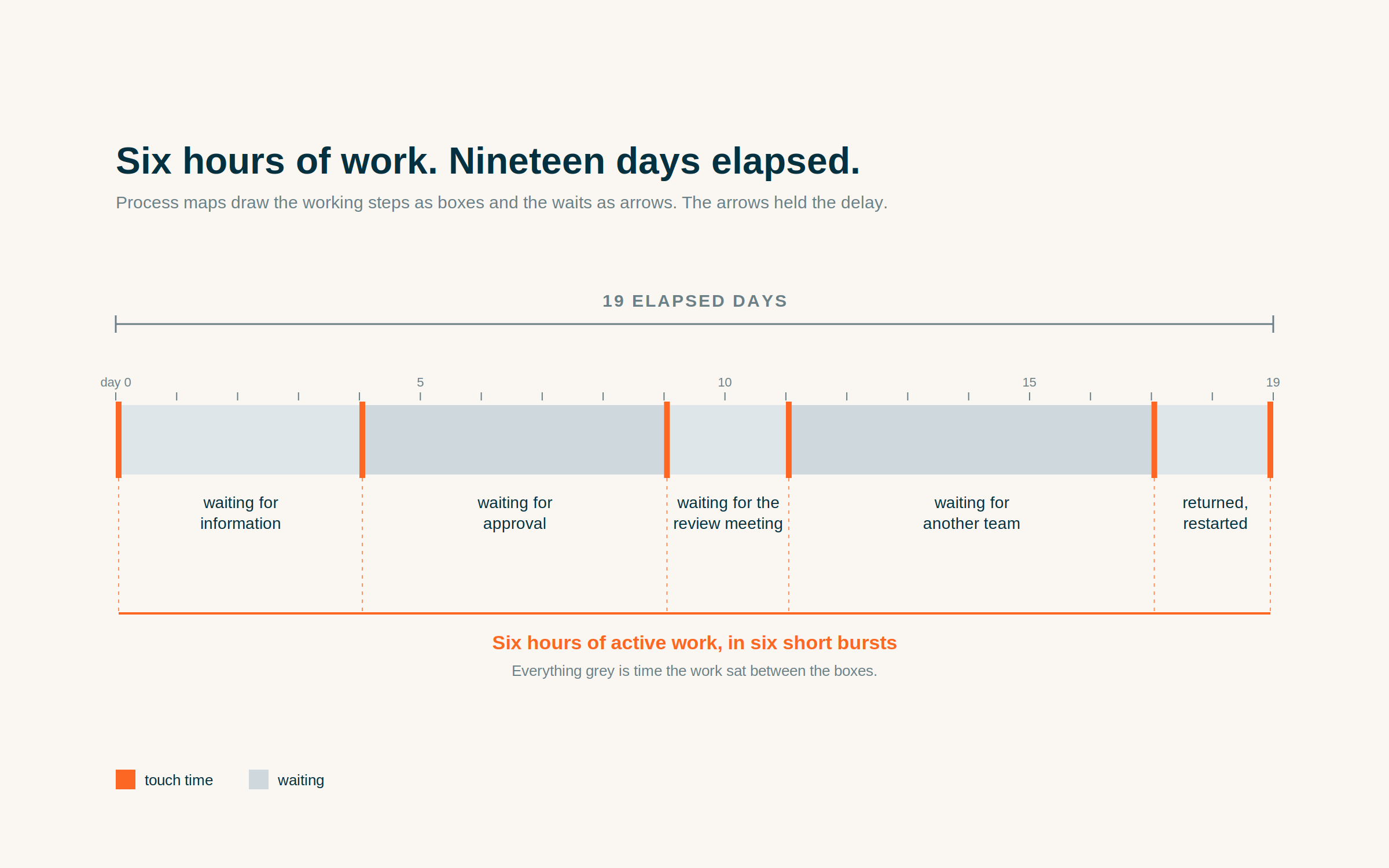

A six-hour deliverable can take 19 elapsed days. Process maps often give working steps plenty of space while compressing the waits between them into arrows. For an operations leader, those arrows may contain most of the delay. Finding which wait controls the finish date is the job of bottleneck analysis.

Record how long someone was working on it and how long it waited for information, an approval or another team.

5. Mark the decisions and handoffs

For each consequential decision, ask who could make it, what evidence they needed and how the work reached them. For each handoff, ask what had to move with the work and whether the recipient received it.

An owner named in a project system may not have the authority required to move the work. A handoff can be recorded as complete while the context needed for the next step remains with the previous team.

6. Examine the workarounds

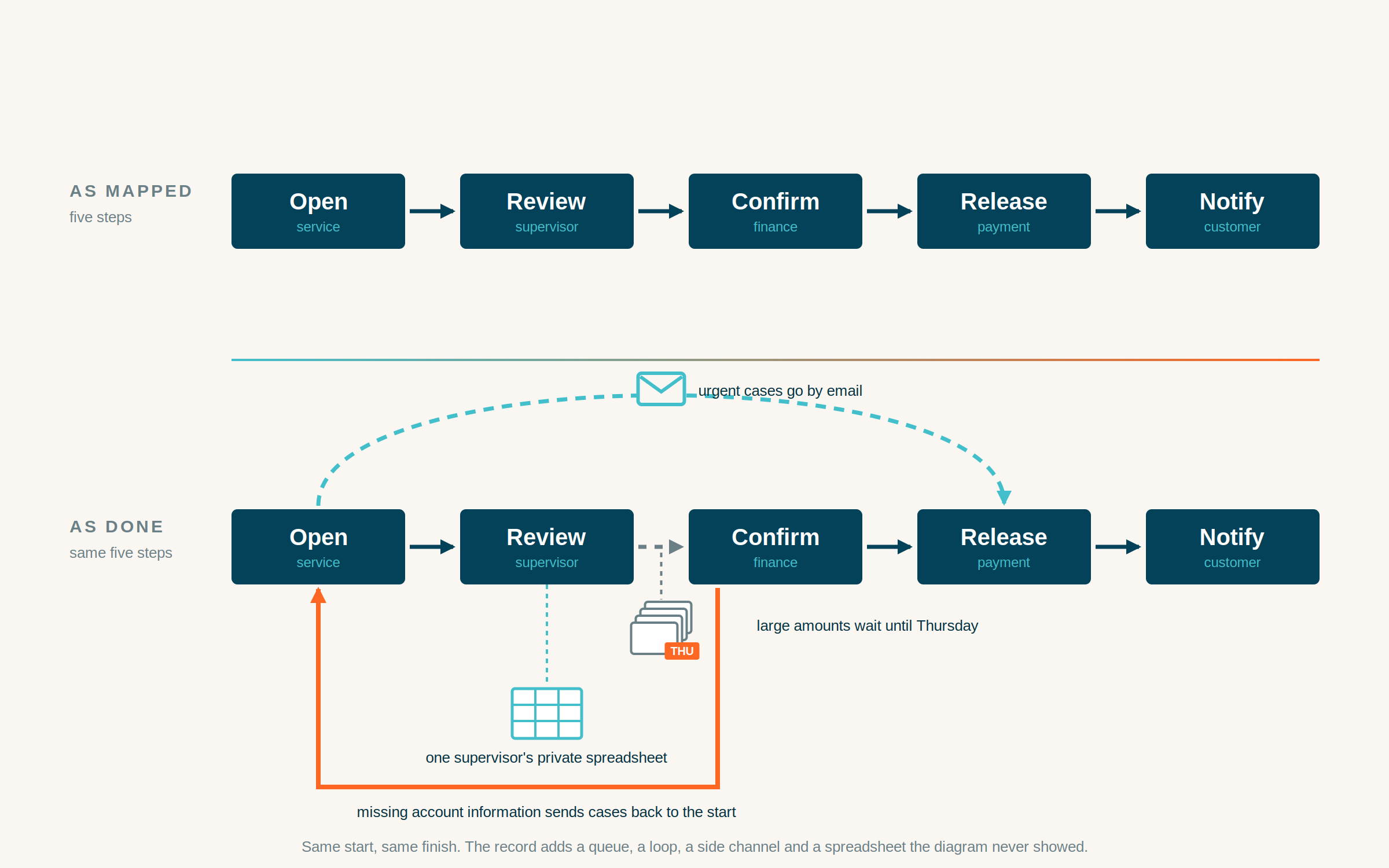

Identify the spreadsheets, side channels and informal approvals that keep the process functioning. Do not celebrate them automatically, and do not remove them automatically. Determine what condition made each workaround necessary.

7. Test the map

Walk additional cases through the completed map. If the route repeatedly disagrees with the model, determine whether the model is incomplete, required controls are failing, or recurring exceptions need a formal route. Resolve that difference before using the map as the basis for redesign, automation or compliance.

Then assign responsibility for keeping it current. A map without an owner and a review trigger begins drifting as soon as the workshop ends.

Start with the outcome that should have moved

If an important priority is already late, mapping an entire department may be unnecessary. Begin with the milestone, decision or deliverable that should exist by now.

Reconstruct its actual route, which is the first step of root cause analysis for a stalled priority. Find where it waited, reopened or returned to the same overloaded person. Check whether funding, authority or an external dependency explains the delay better than the work path does. If the work path remains the strongest explanation, change one condition and measure what happens.

Emergent Skills applies this method narrowly to one stalled priority, decision, milestone or deliverable. The purpose is to identify what is controlling that result, not to document every process across the operation.
